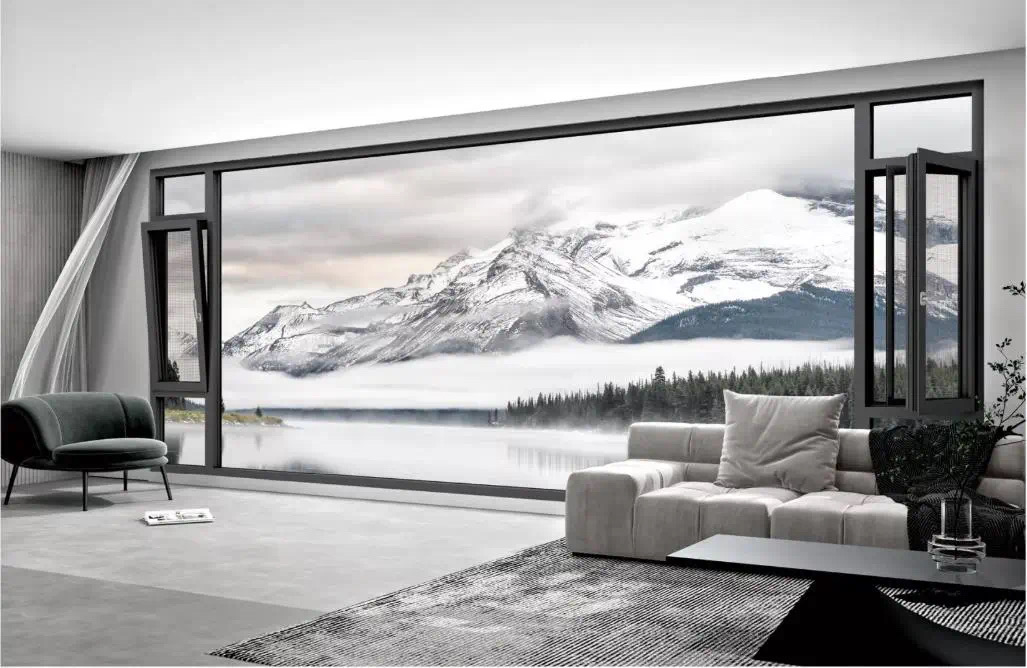

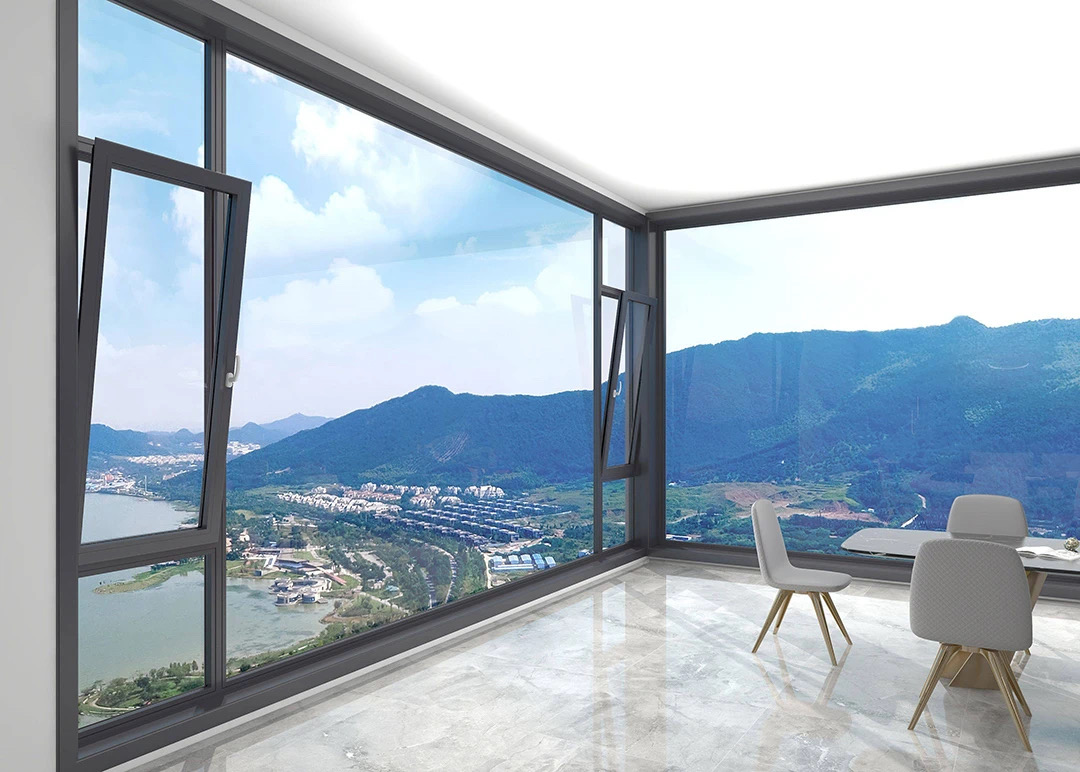

TILT AND TURN WINDOW
Water tightness, air tightness and wind pressure resistance.

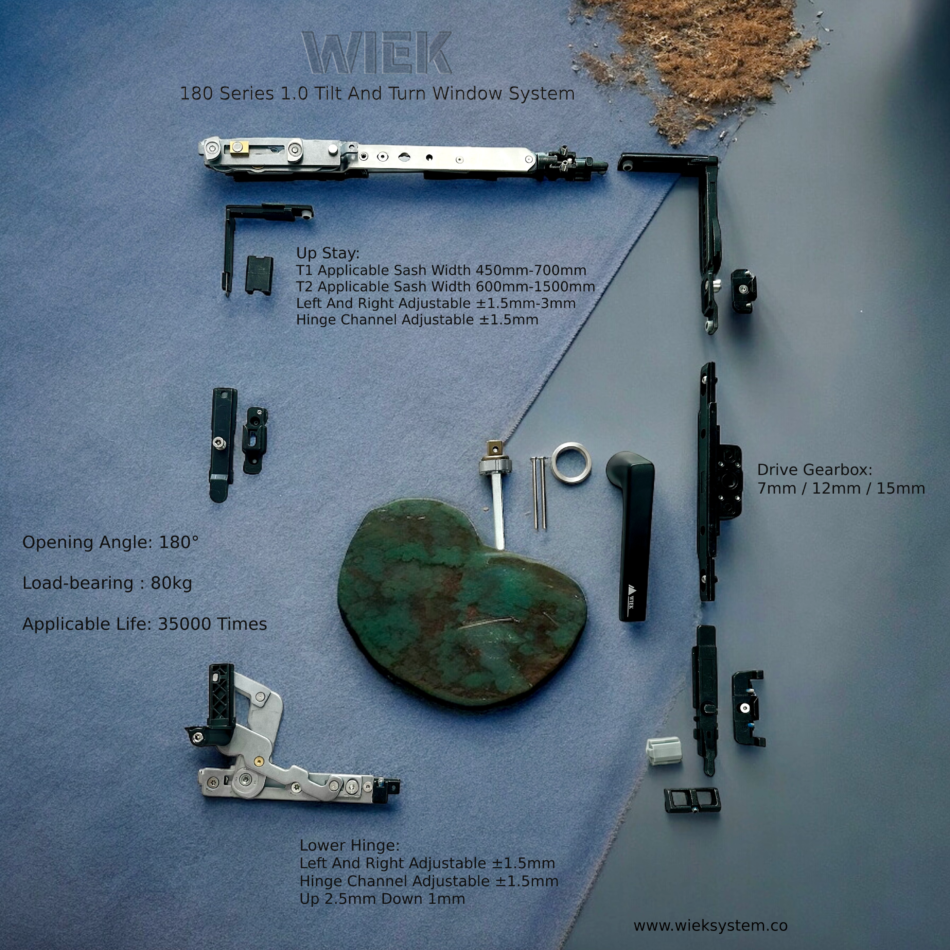

WIEK 180-degree hidden in-inverted hardware system, suitable for frame fan flat above 4mm profiles, up and down, left, right, back, back, back and back, adopt rotary installation method, fast and convenient; equipped with large cable-staying rods, small corners; windows to meet various different need
Tilt & Turn Window with Concealed Hinge | Applicable RangeApplicable Range | |
Sash Width | (mm) | 300-1.200 |
Sash Height | (mm) | 400-2.400 |
Load-bearing | (kg) | ≤80 |
T type actuator | (mm) | 20,24,28,32,36,40 |
Square shaft drive center distance | (mm) | 11.5,22,25,28,30,32,35 |
Articles about the product
The Role of Door and Window Hardware in Home Design: How They Enhance Interior Spaces
The Role of Door and Window Hardware in Home Design: How They Enhance Interior Spaces Our homes are significant components… Read more
Articles about the product
The Role of Door and Window Hardware in Home Design: How They Enhance Interior Spaces
The Role of Door and Window Hardware in Home Design: How They Enhance Interior Spaces Our homes are significant components… Read more
Additional information
| Sash weight | Max. 250 Kg I Max. 400 Kg |
|---|---|
| Sash width | 700mm-3500mm I 700mm-3500mm |
| Sash height | 1500mm – 3000mm I 1500mm – 3000mm |
| Backset | 25mm/27.5mm I 27.5mm/37mm |
| Lock box slot width | 22mm I 22mm |
| Groove width of wheel set | 18mm I 22mm |
| Groove height of wheel set | 30mm I 42mm |
