ProductsWindows Systems
Limiting Hinges
All SystemsActive: Limiting Hinges
SYSTEM SELECTION
- Innovative snap-on design for faster installation.
- All top screws are pre-installed at the factory, reducing assembly time.
- Guide rail fits into the side notch, ensuring safer installation.
- High load capacity of 60–70 kg.
- Horizontal adjustment: ±1.5 mm; Height adjustment: ±3 mm.
- Made of 304 stainless steel and aluminum alloy, providing excellent corrosion resistance, ideal for coastal environments.
- Opening Angle: 90°
Material304 Stainless steel, Aluminum alloy
Surface TreatmentNSST Salt Spray Test resistant
PerformanceOpening and closing life cycle test validated
OriginBelgian Design

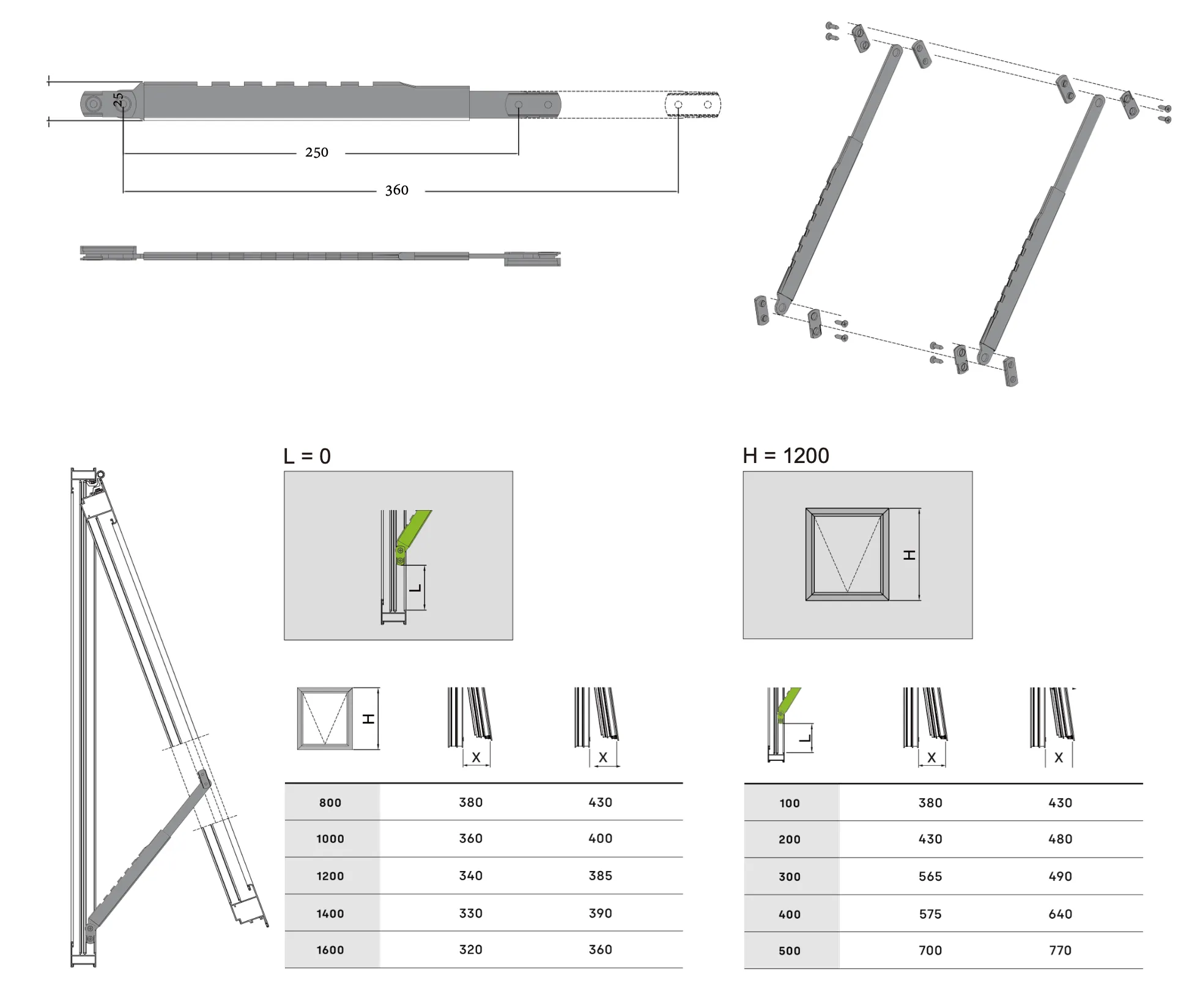

Extensible/Adjustable Limiting Hinge
W23045

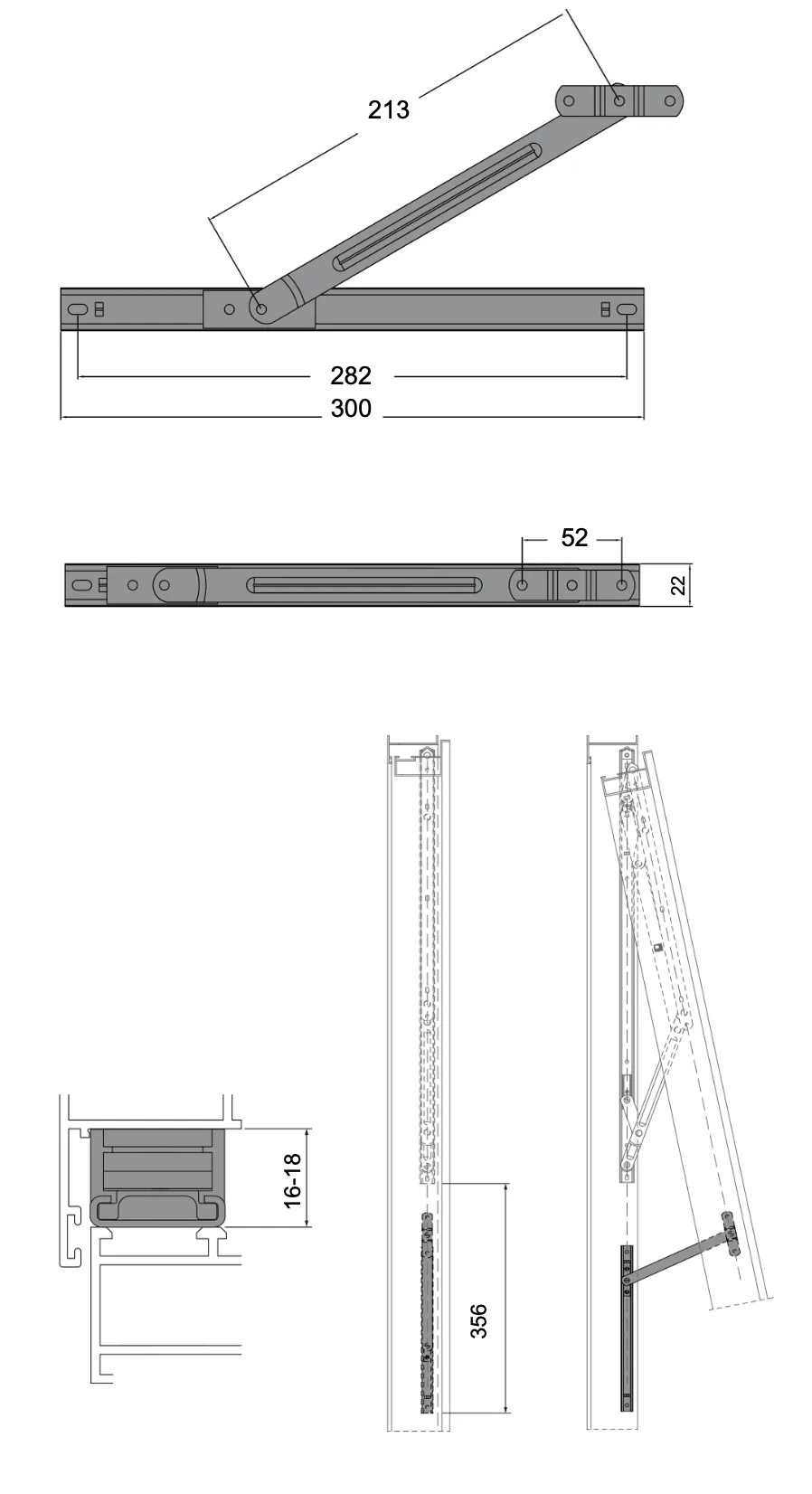

Wind Support / Stainless Steel Limiting Hinge
W23143
Request Offer
* WIEK System products are constantly being improved. We reserve the right to change technical values. Please contact our technical office for more detailed information.
