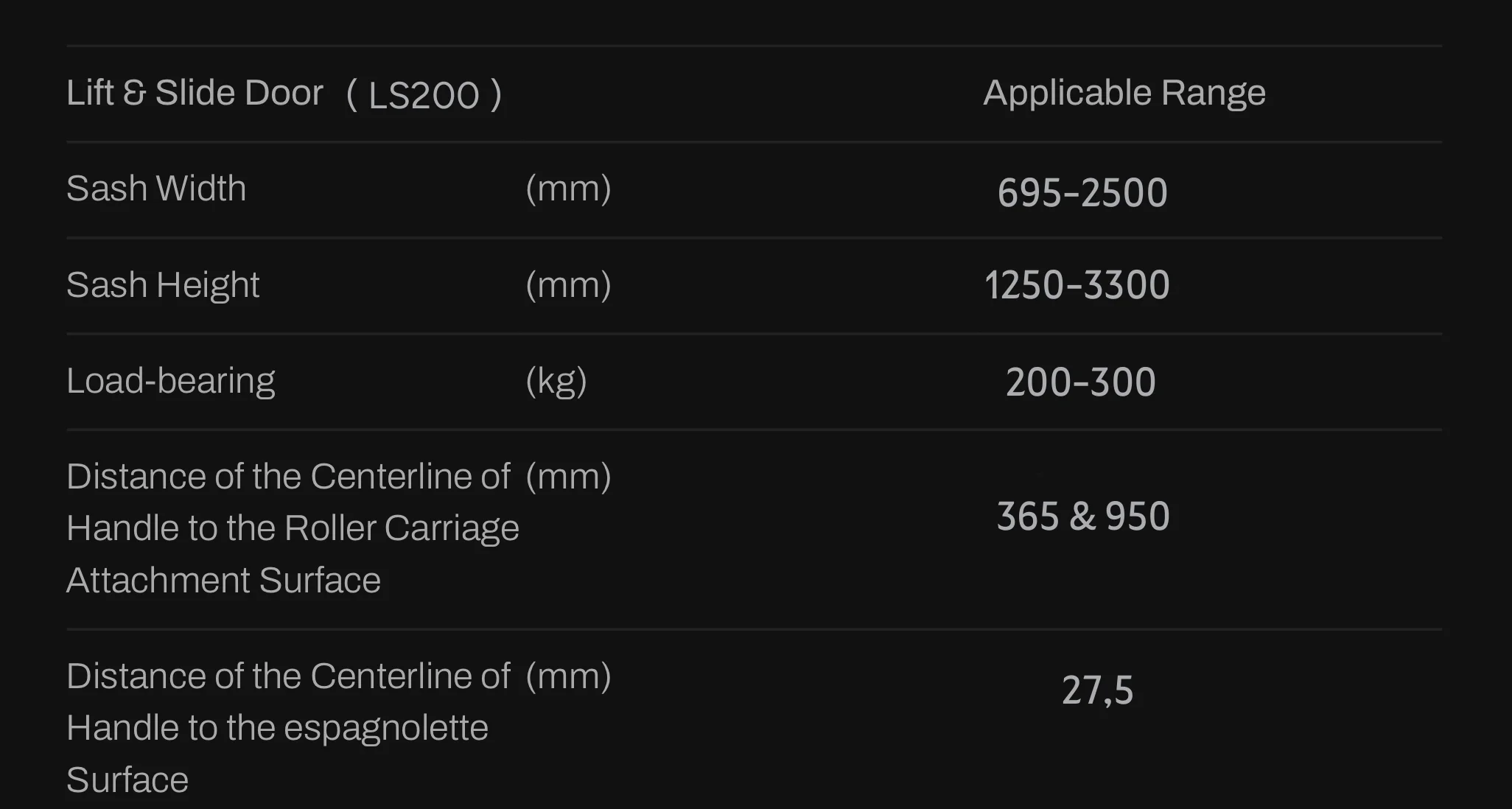

SYSTEM SELECTION
- The optimal market choice in its performance range.
- The smooth, silent, and effortless sliding of door leaves enables the creation of spacious, unobstructed areas through various configurations of up to six leaves with diverse combinations.
- ≤200 kg per leaf: Installation of front and rear main pulley assemblies is required.
- 200–400 kg per leaf: Mandatory installation of two auxiliary load-bearing pulleys.
- Silent sliding track system (patented roller damping technology)
- Multi-leaf synchronization positioning accuracy ±1.5 mm (EN 13126 compliant)

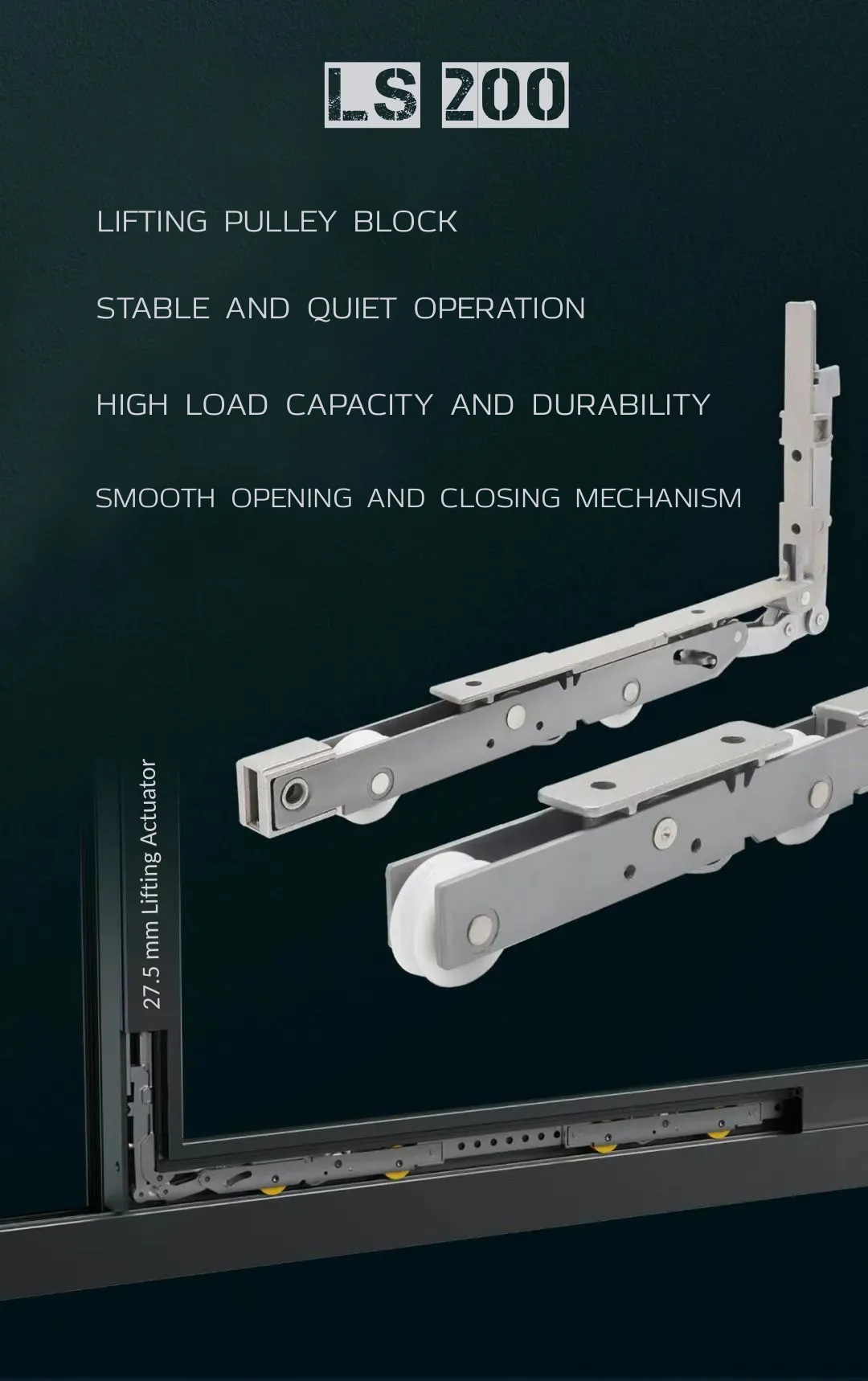

- LS200 Lift-and-Slide Roller Assembly (Compatible with 18 mm channel profiles).
- Supports door leaf configurations up to 200 kg.
- Compatible with 18/22 mm channels using included adaptation shims.
- Secured to the profile via Pozidriv head screws.
- Wheels made of reinforced resin for high-load capacity.
- Supplementary roller assemblies required for configurations up to 200 kg
MaterialAerospace-grade aluminum alloy, Stainless steel
Surface TreatmentAnodized coating ≥ 15 μm
PerformanceEN 13126 compliant sync positioning
OriginBelgian Design
F27.5 Espagnolette (Keyed)
W23008A
Small Bumper Block
W01342
Anti-collision Block
W01343
Anti Swing Wheel
W01344
Anti-collision Block (SS)
W23201

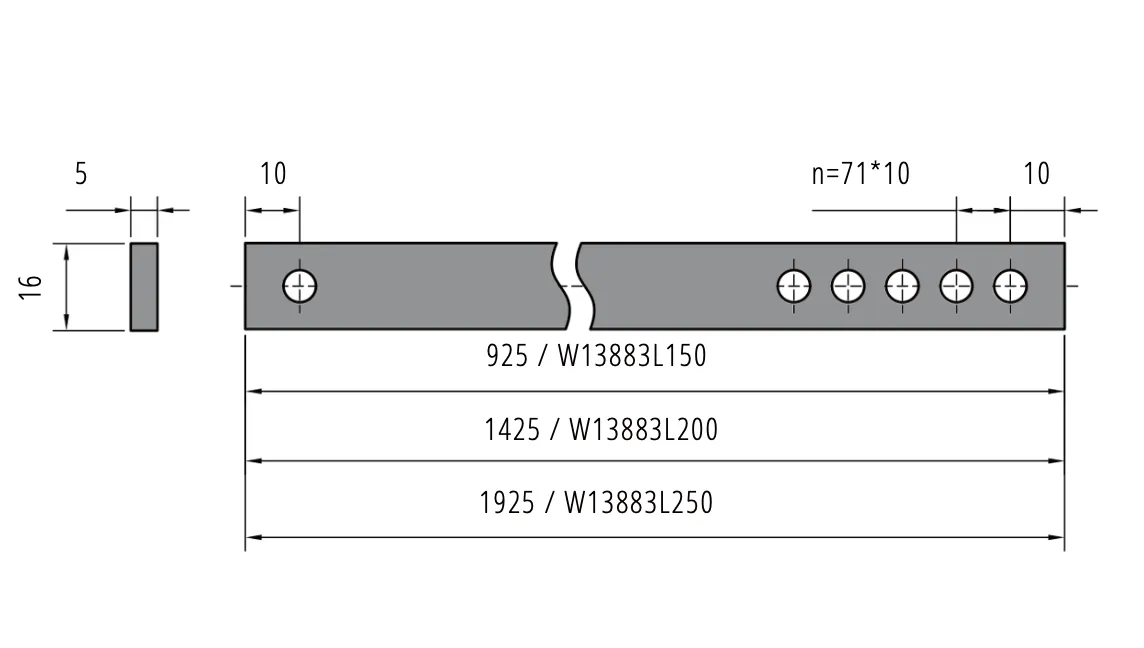

Connecting Rod (L150/L200/L250)
W13883

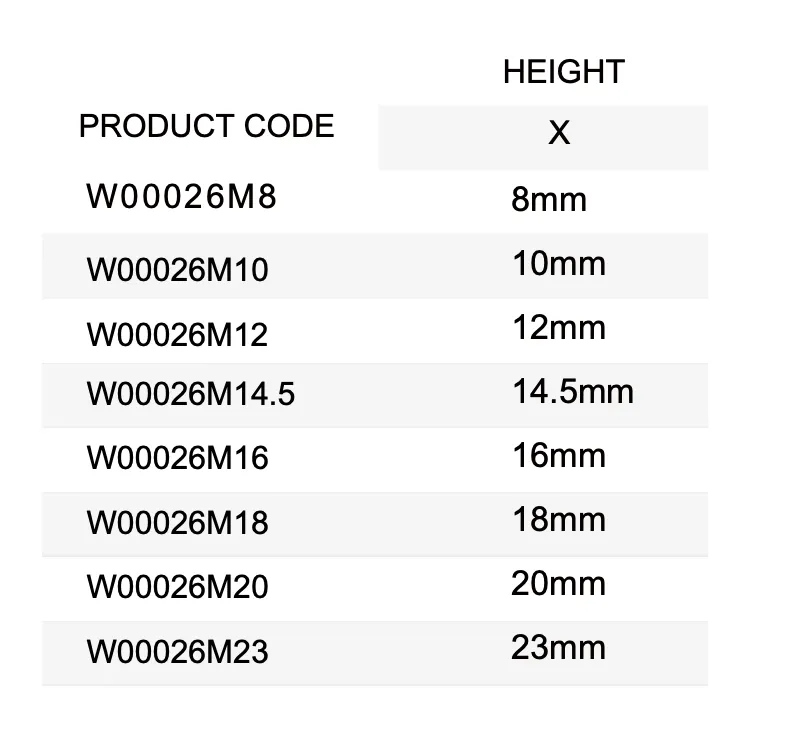

Lifting-Sliding Packer (Espag & Bogie)
W00026
Lifting-Sliding Packer (Espag & Bogie)
W00026
Small Bumper Block (Variant)
W01341

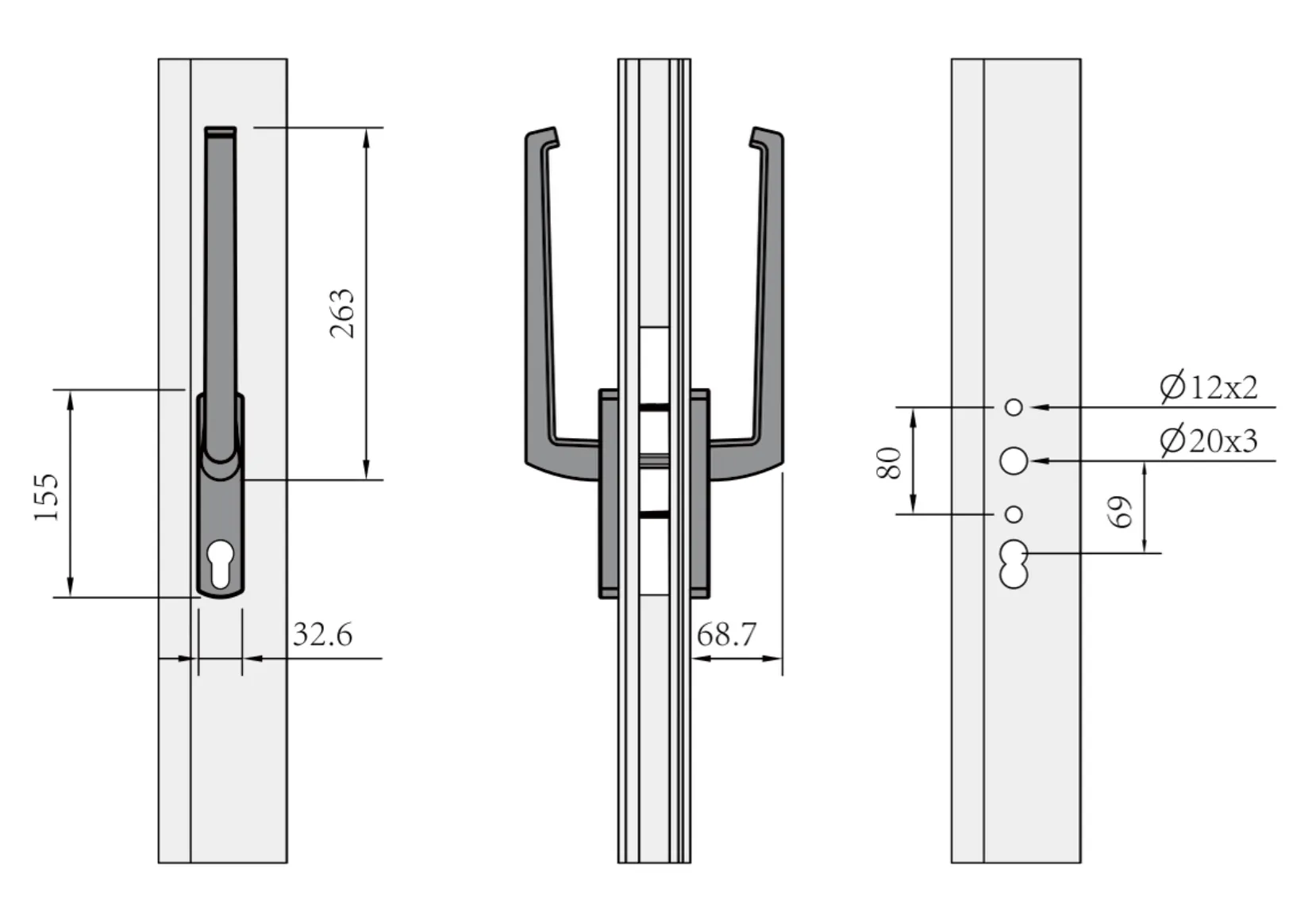

Contour Sync Handle (Set)
W03203D
Flex Flow Handle (Set)
W03221D

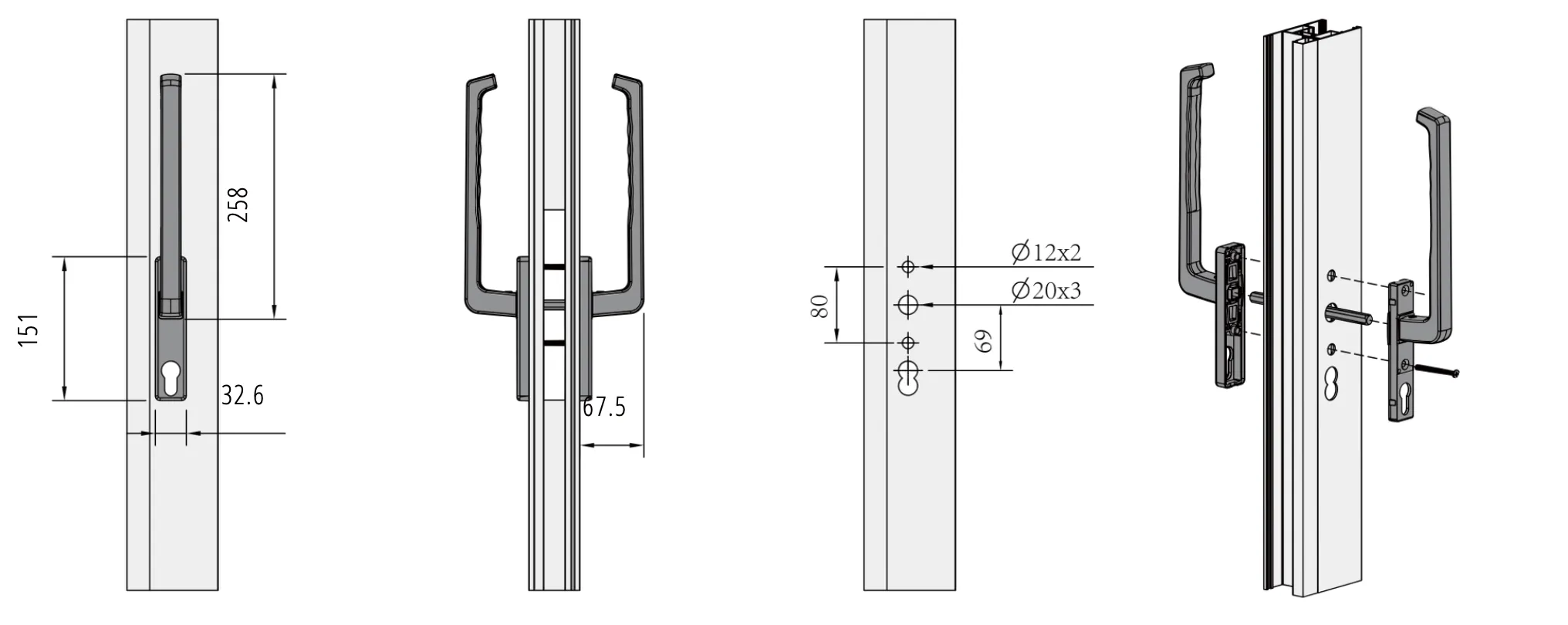

Ergo Flex Lever Handle
W23150
Flex Flow Handle
W23221

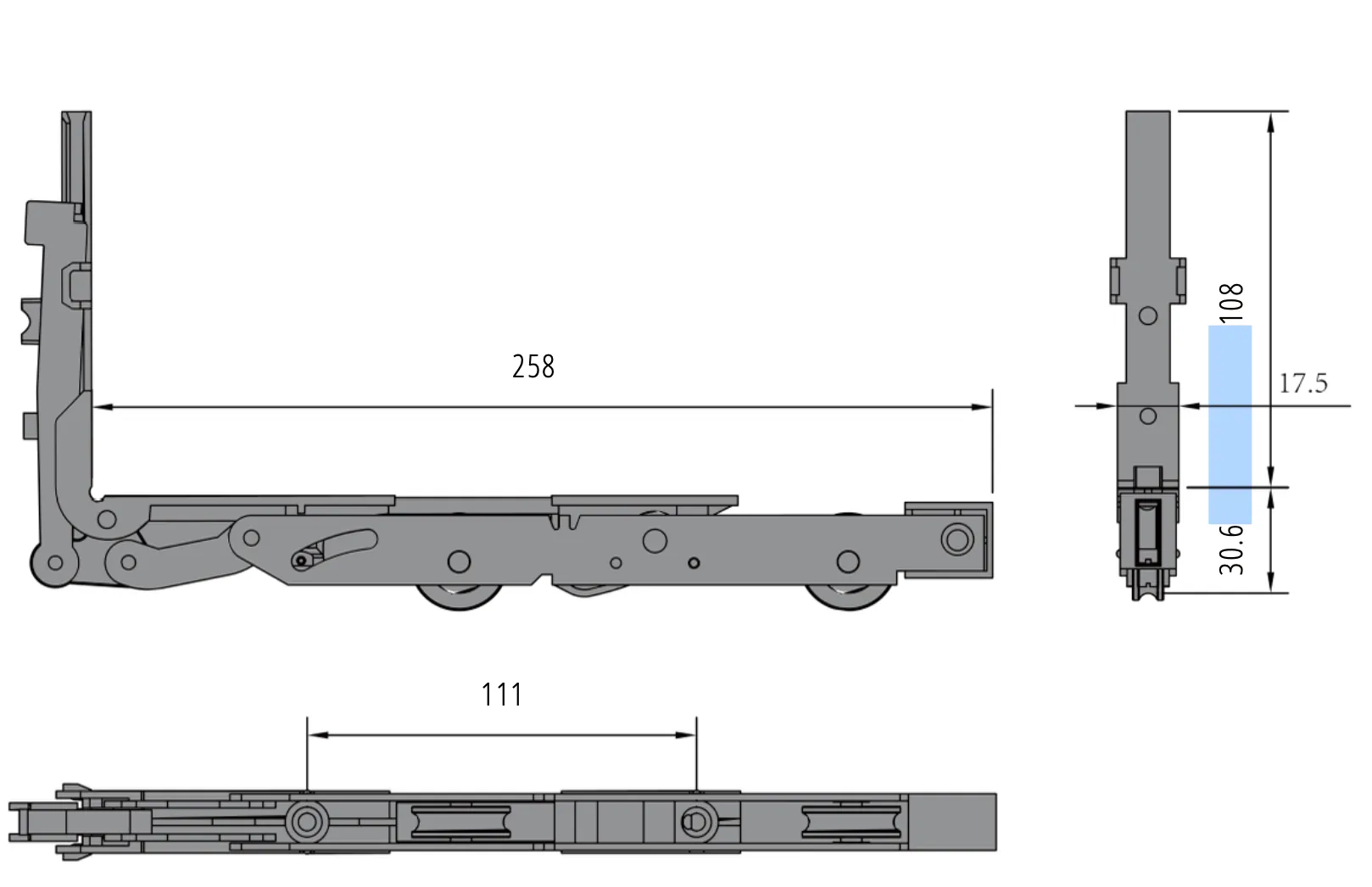

LS200 Main Bogie
W22955
LS200 Tandem Bogie
W22956

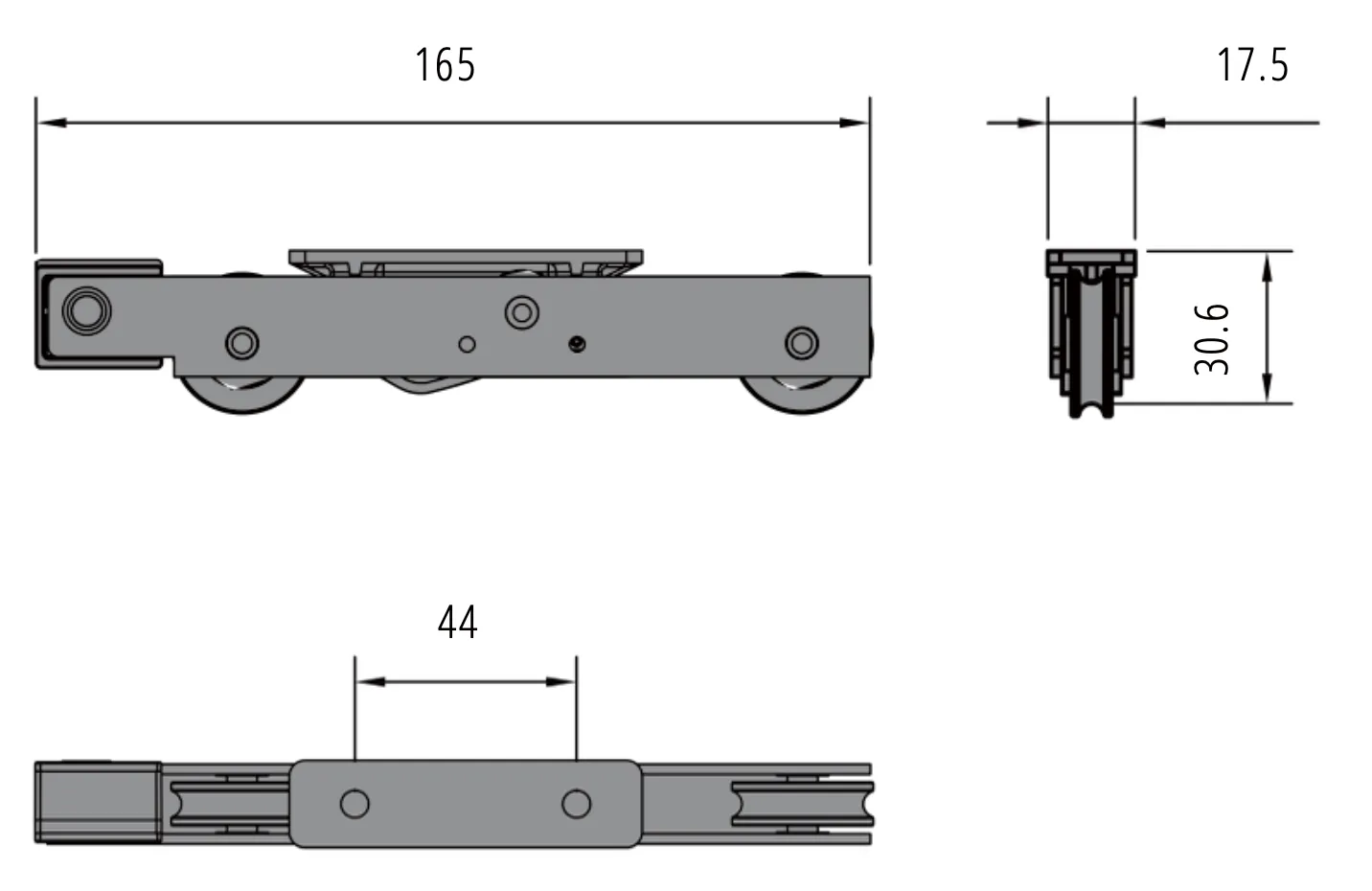

LS200 Bogie Handle Side
W22957
Strike Point
W13999
Strike Point (Variant)
W139993
Strike Point (Large)
W139993A
Lock Point Washer
W14043
Strike Plate (Detailed)
W1404303
Strike Plate (Detailed)
W1404308
Strike Point (Variant)
W141333
Strike Plate
W22727
Strike Plate (SS)
W23219
Strike Plate (SS Variant)
W23220
Request Offer
* WIEK System products are constantly being improved. We reserve the right to change technical values. Please contact our technical office for more detailed information.
