Multi Point Lock
All SystemsActive: Multi Point Lock
SYSTEM SELECTION
- Swing Door System with multi-point locking mechanism exceeds European security standards (EN 12209 Class 3+)
- Triaxial adjustable hinges (vertical, lateral, depth) installed in sets of three, supporting heavy door loads up to 150KG (EN 1935 Grade 13)
- Significantly extends hinge service life by at least 40%, verified through fatigue testing (EN 13927)
- Robust construction increases durability and long-term performance in demanding applications.
MaterialAluminum alloy, Zinc alloy, Carbon structural steel
Surface TreatmentAnodized, Powder coating, Polishing and drawing
PerformanceTested to 25,000 cycles (EN 1906:2012 Grade 2)
OriginBelgian Design

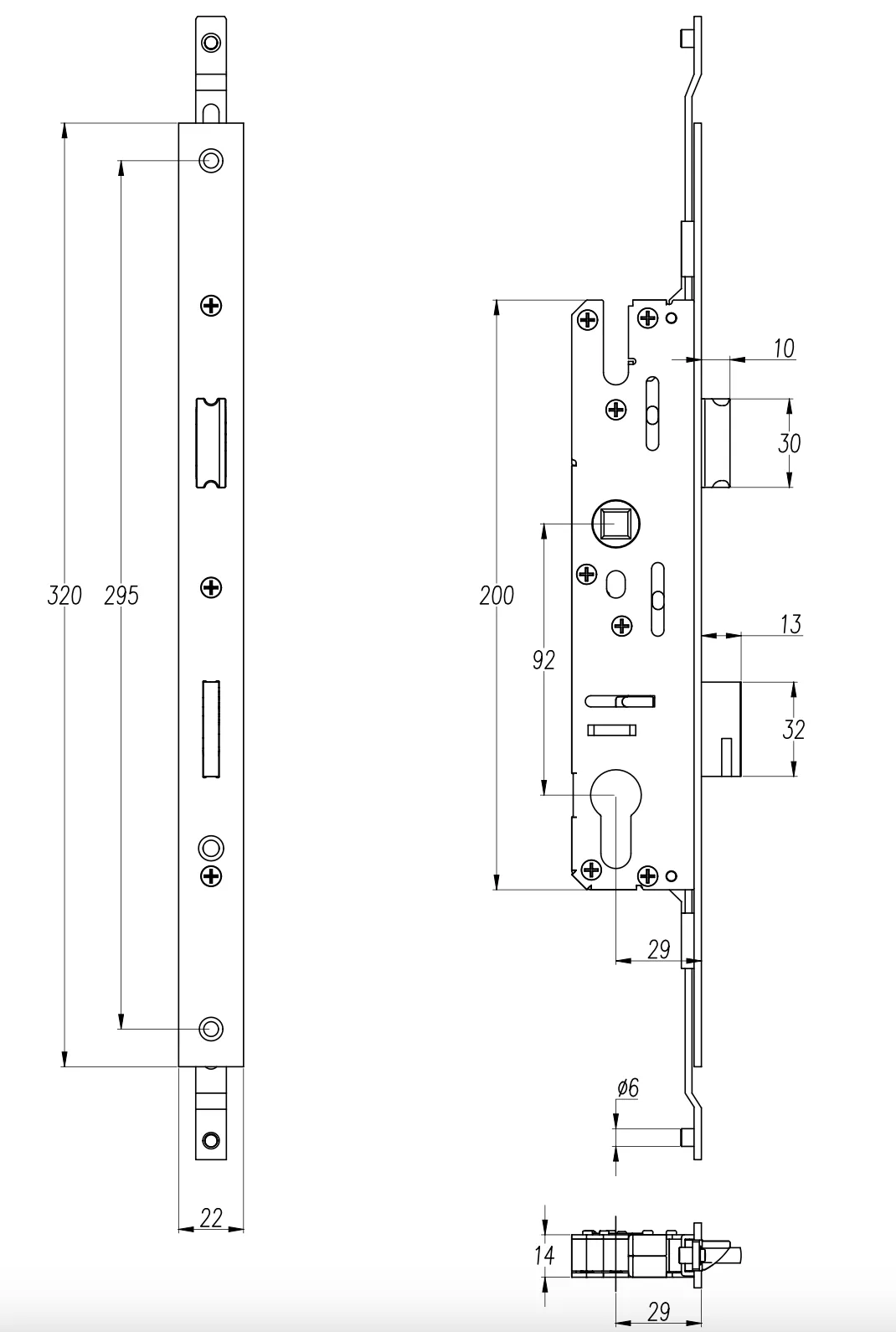

Multi-Point Lock Body (8532)
W23123

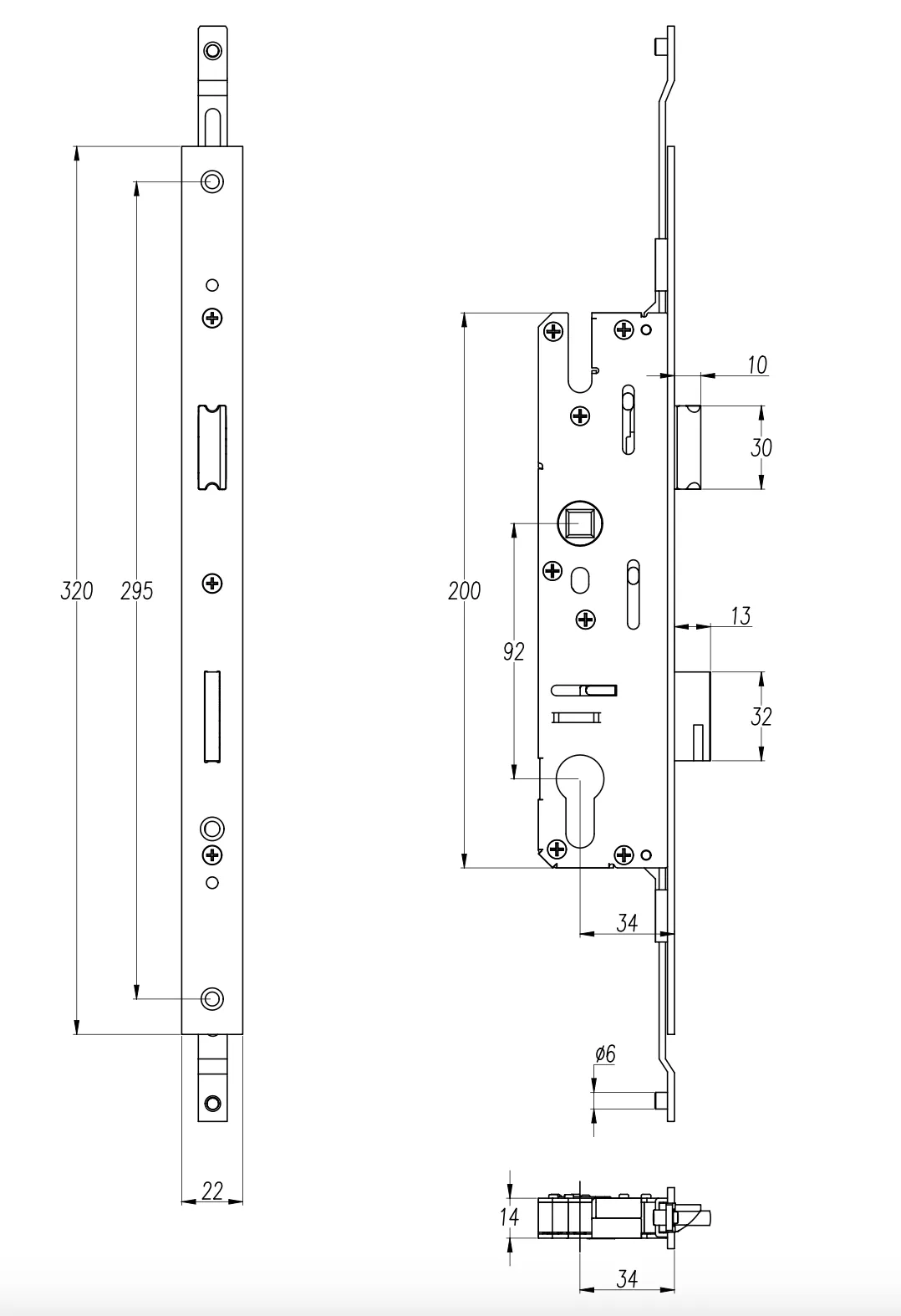

Multi-Point Lock Body (8532)
W23124

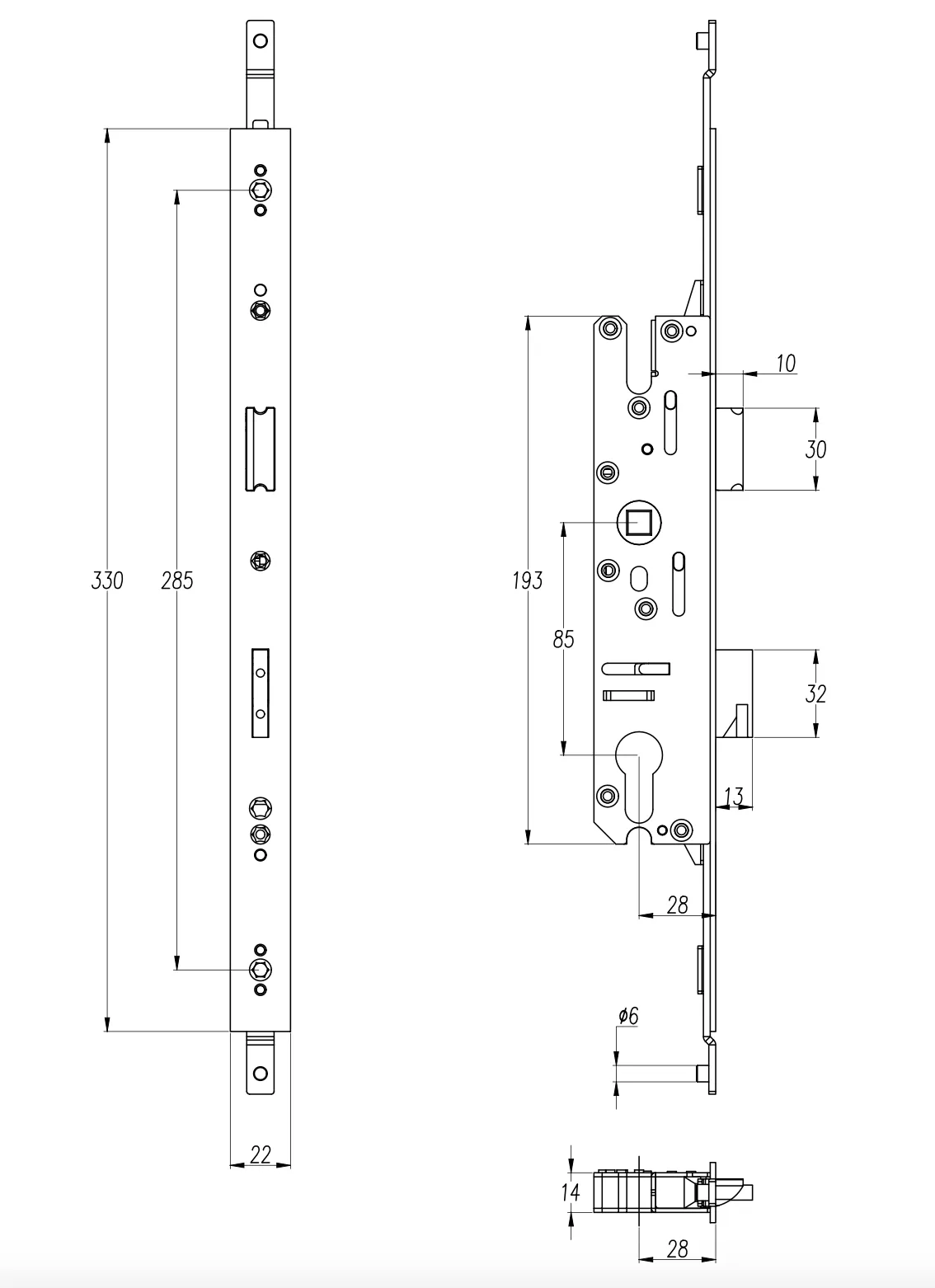

Multi-Point Lock Body (8528/8530/8533/8535)
W23180

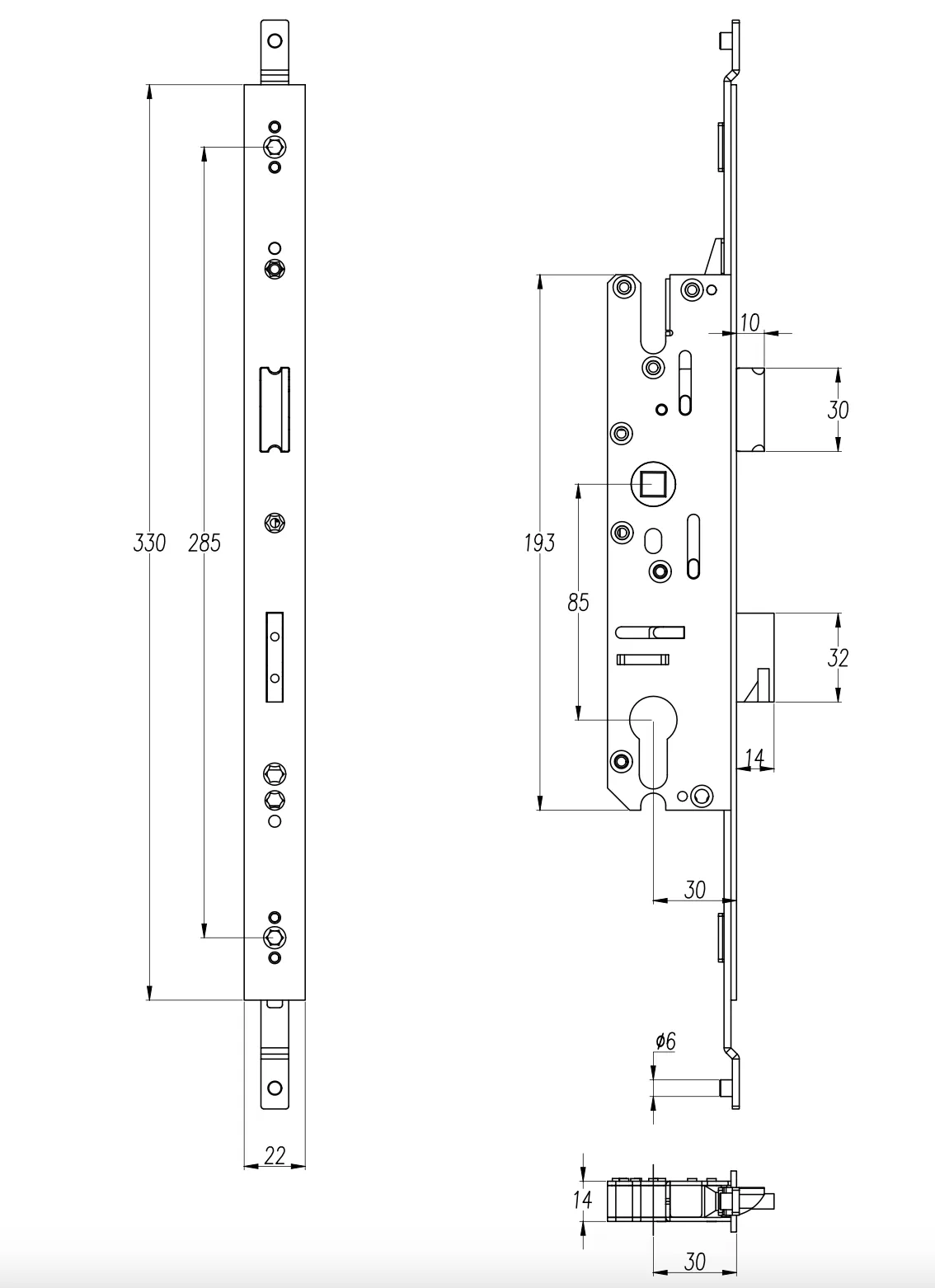

Multi point lock body 8535
W23181
Request Offer
* WIEK System products are constantly being improved. We reserve the right to change technical values. Please contact our technical office for more detailed information.
