ProductsDoor Systems
Hinges
All SystemsActive: Hinges
SYSTEM SELECTION

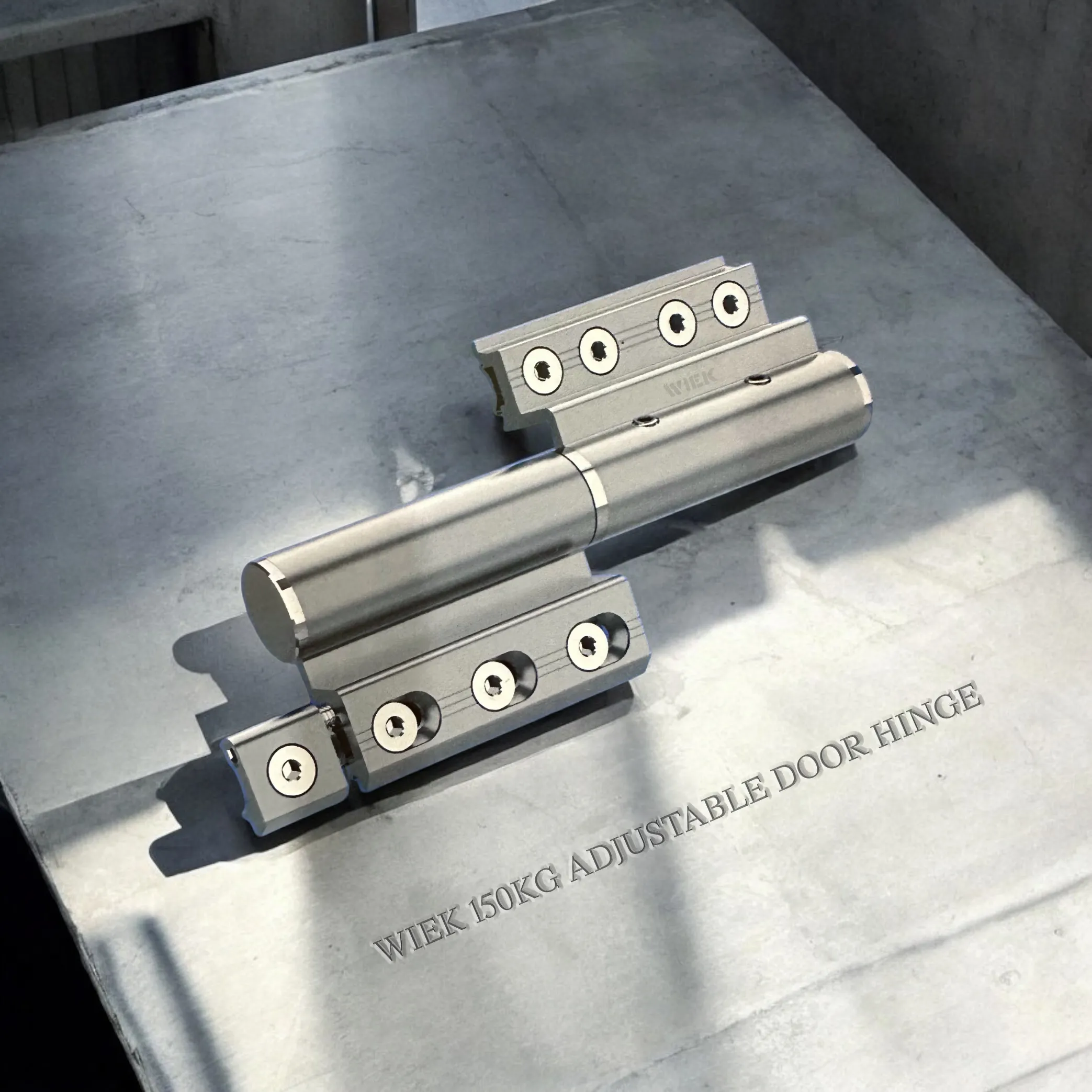

- Robust door hinge with triaxial adjustment (vertical, lateral, depth) supporting door weights up to 150 kg.
- Equipped with needle bearings in the pin housing, it operates smoothly and quietly without play.
- The stainless steel central joint prevents wear over time, unlike plastic components, ensuring long-lasting durability and silent performance.
MaterialAluminum alloy, Zinc alloy, Carbon structural steel
Surface TreatmentAnodized, Powder coating, Polishing and drawing
PerformanceTested to 25,000 cycles (EN 1906:2012 Grade 2)
OriginBelgian Design

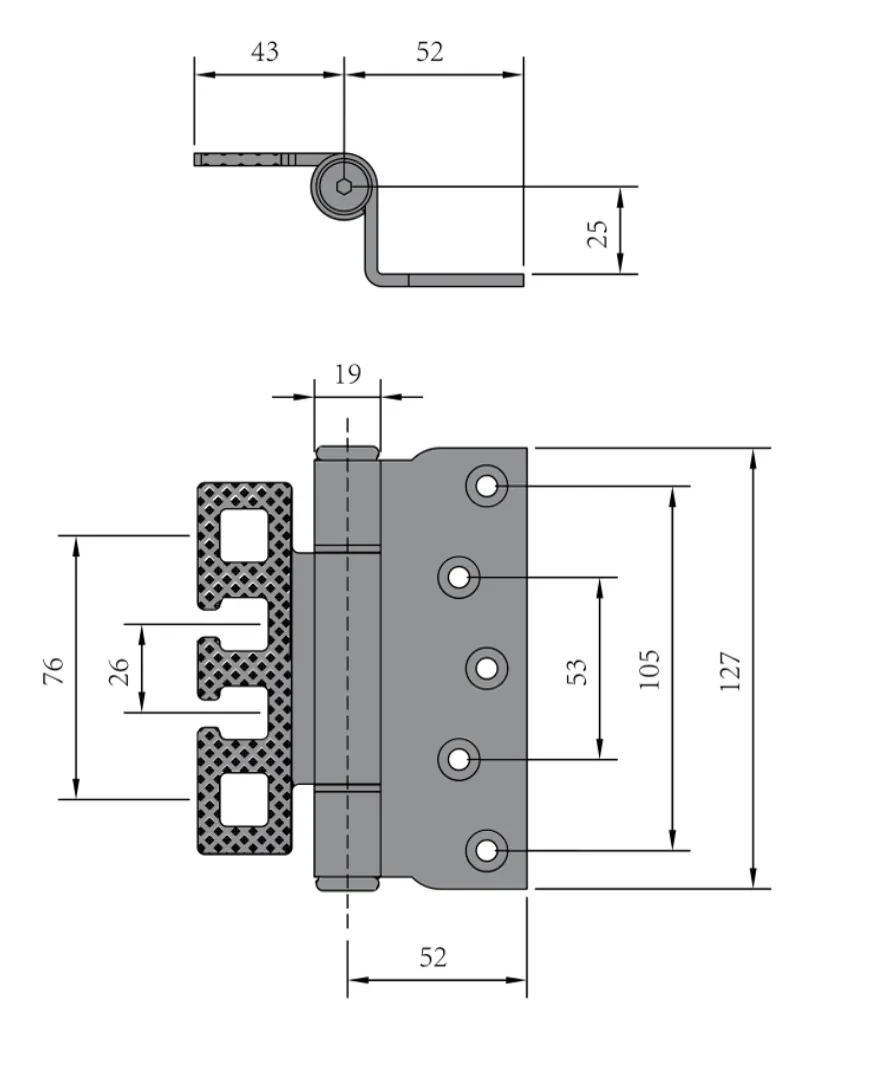

Fire Door Hinge (Set)
W22969

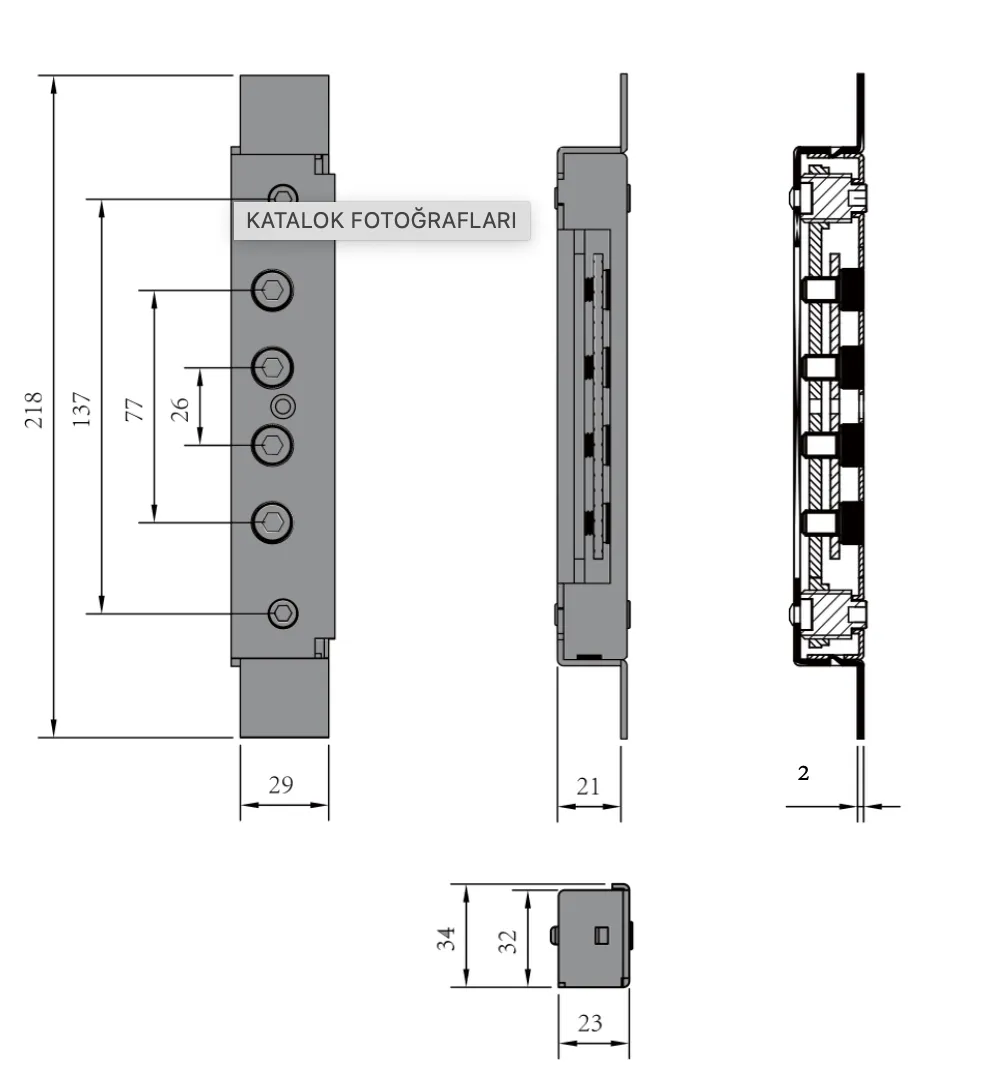

Fire Door Hinge (Single)
W22970

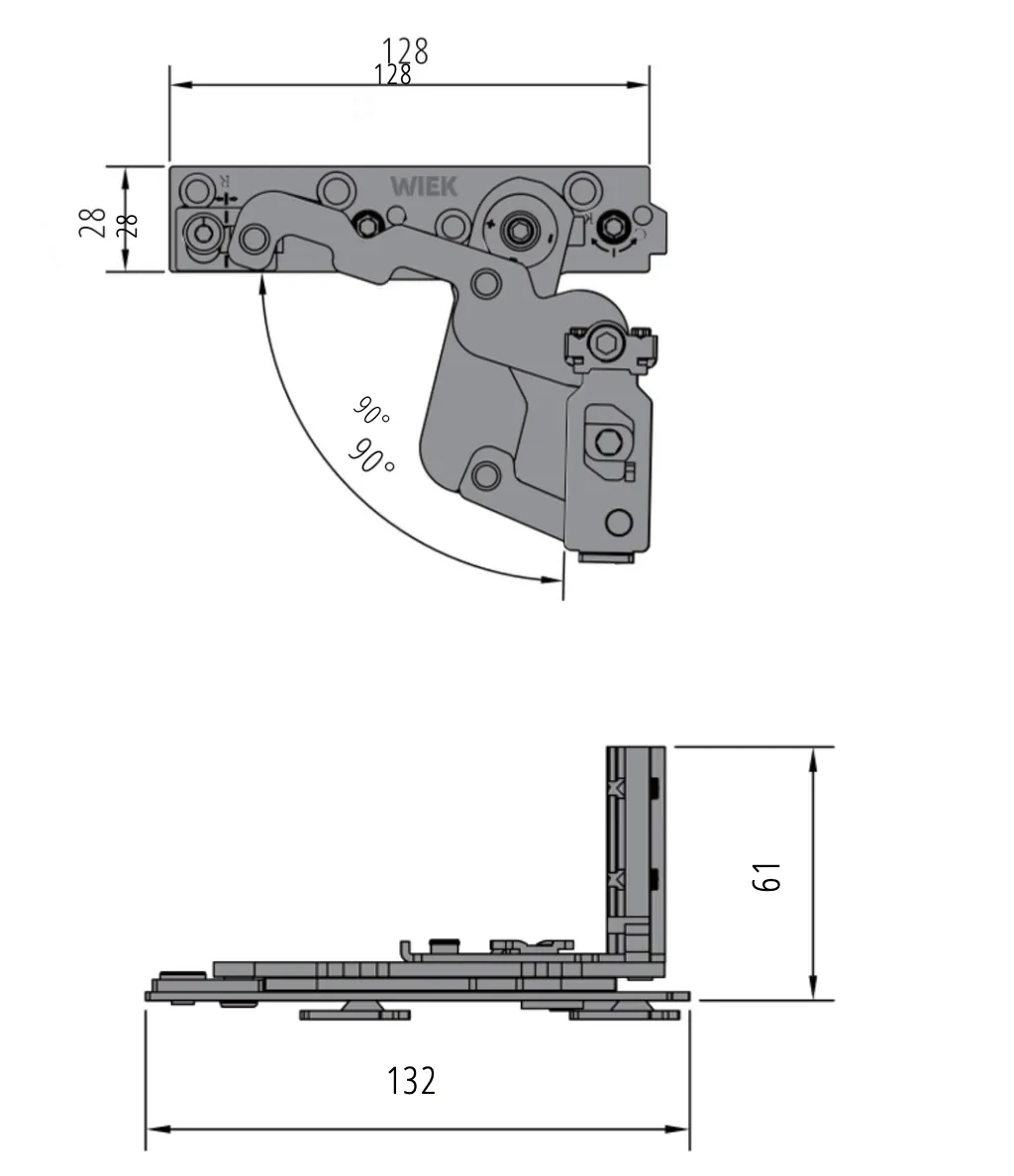

90-Degree Rotation Hinge (150kg)
W22973

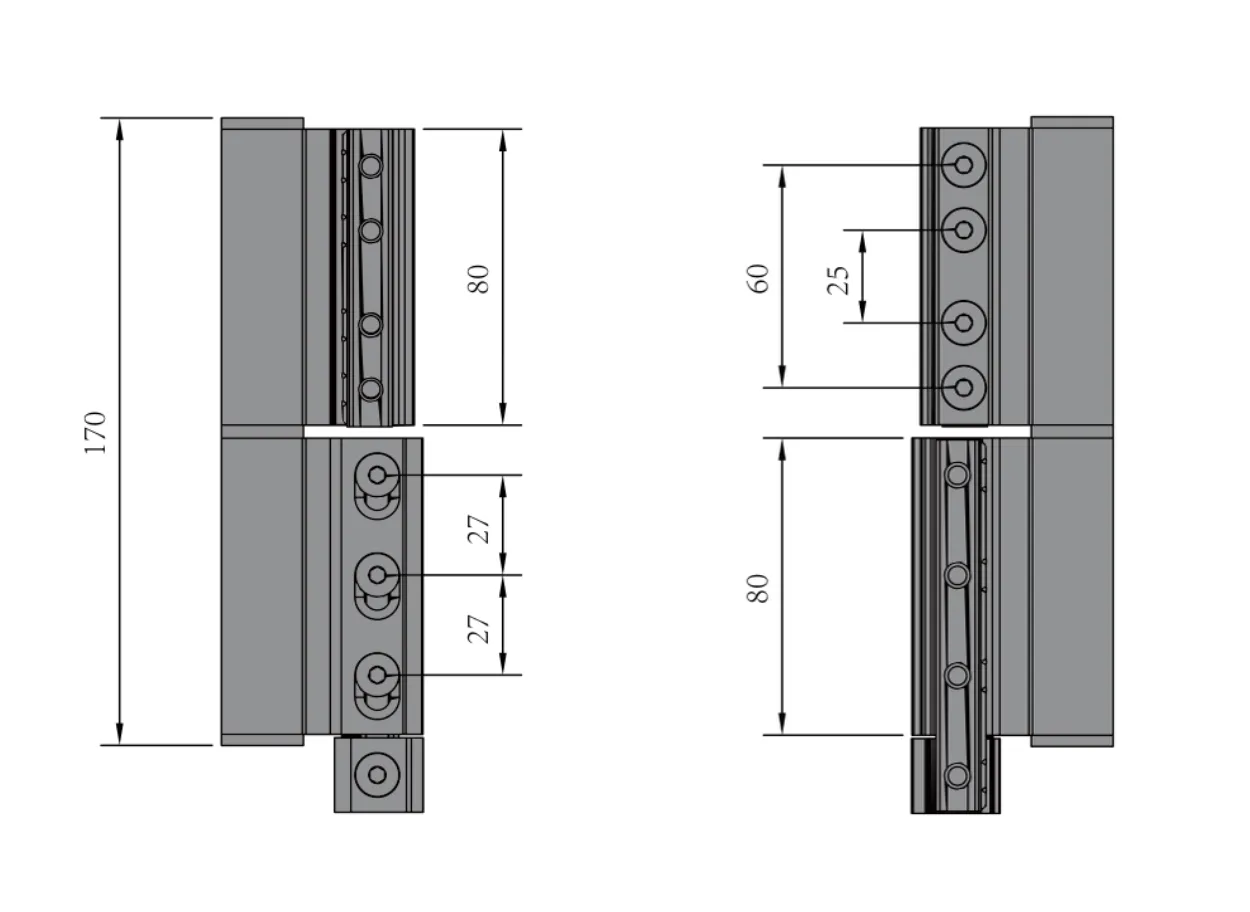

Adjustable Door Hinge
W23178

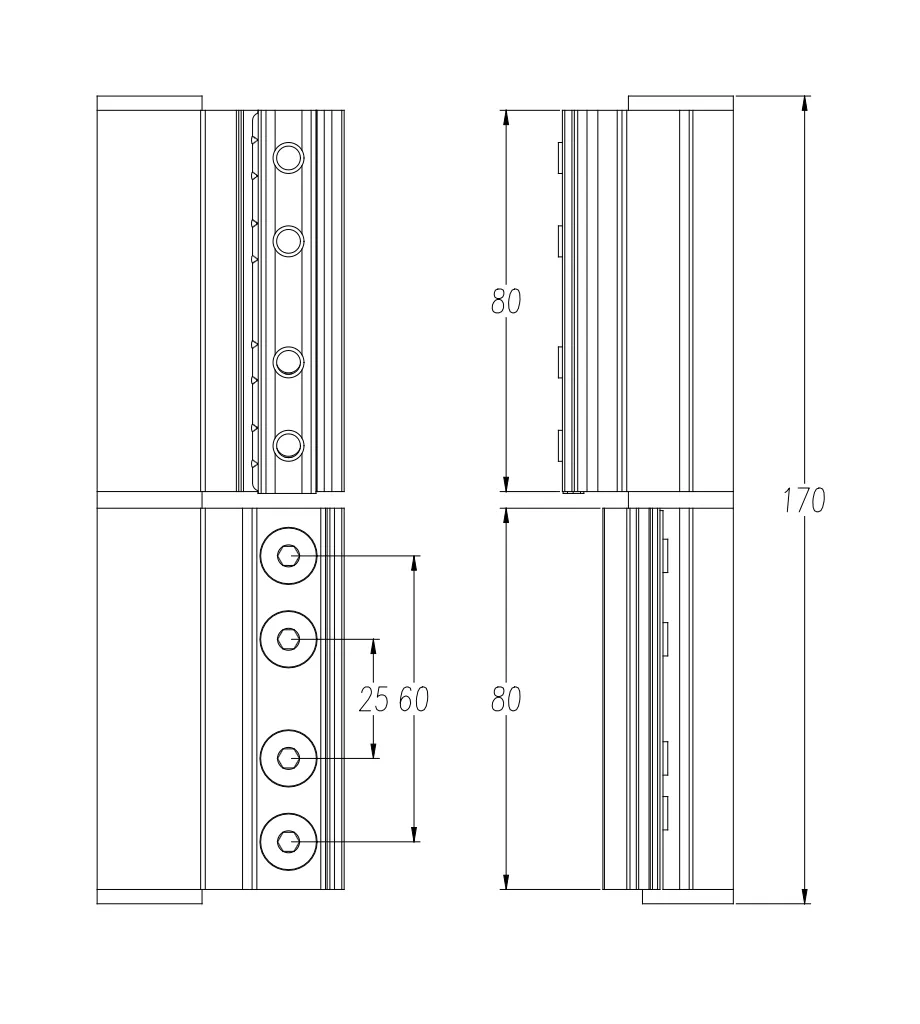

Multi Point Lock Body 8530
W23179
Request Offer
* WIEK System products are constantly being improved. We reserve the right to change technical values. Please contact our technical office for more detailed information.
