ProductsDoor Systems
Door Handles
All SystemsActive: Door Handles
SYSTEM SELECTION
- Integrated keyhole reinforcement structure (EN 1627 Burglar Resistance Class B)
- Dual-action lever system for ±15mm vertical leaf adjustment (BS 6375-1 operational force compliance)
- Raw handle substrate (surface roughness Ra 6.3μm, ISO 1302)
- Client-applied coatings supported: Electrostatic powder coating (QUALICOAT Class 2 certified)
- Anodized finish (20±2μm thickness, EN 12373-1 tested)
- 25,000-cycle operational testing (EN 1906:2012 Grade 2 certification)
- Axial load capacity ≥800N (ISO 8275 test protocol)
MaterialAluminum alloy, Zinc alloy, Carbon structural steel
Surface TreatmentAnodized, Powder coating, Polishing and drawing
PerformanceTested to 25,000 cycles (EN 1906:2012 Grade 2)
OriginBelgian Design

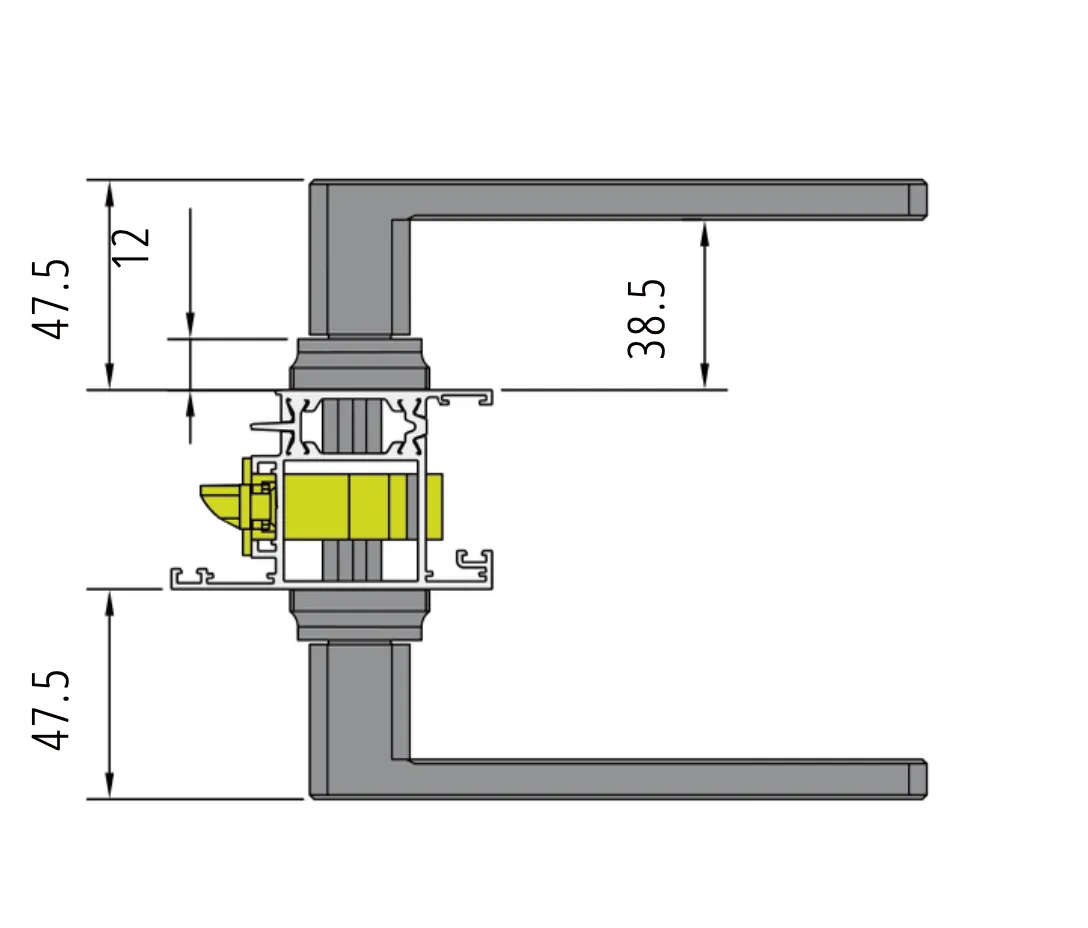

Vanesia Handle
W23119
Vanesia Handle (Variant)
W23119A

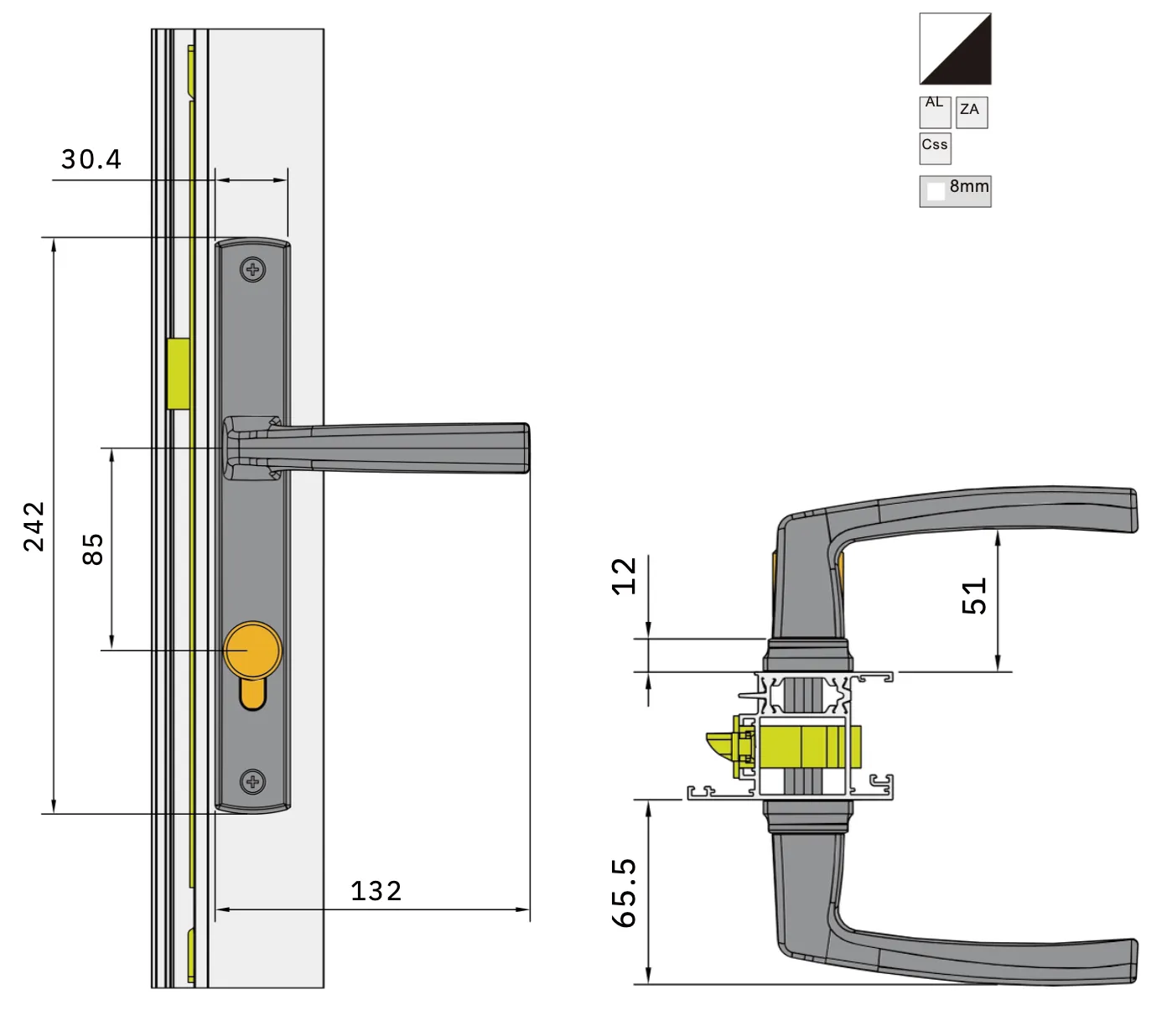

Swift Tail Lever Handle
W23160

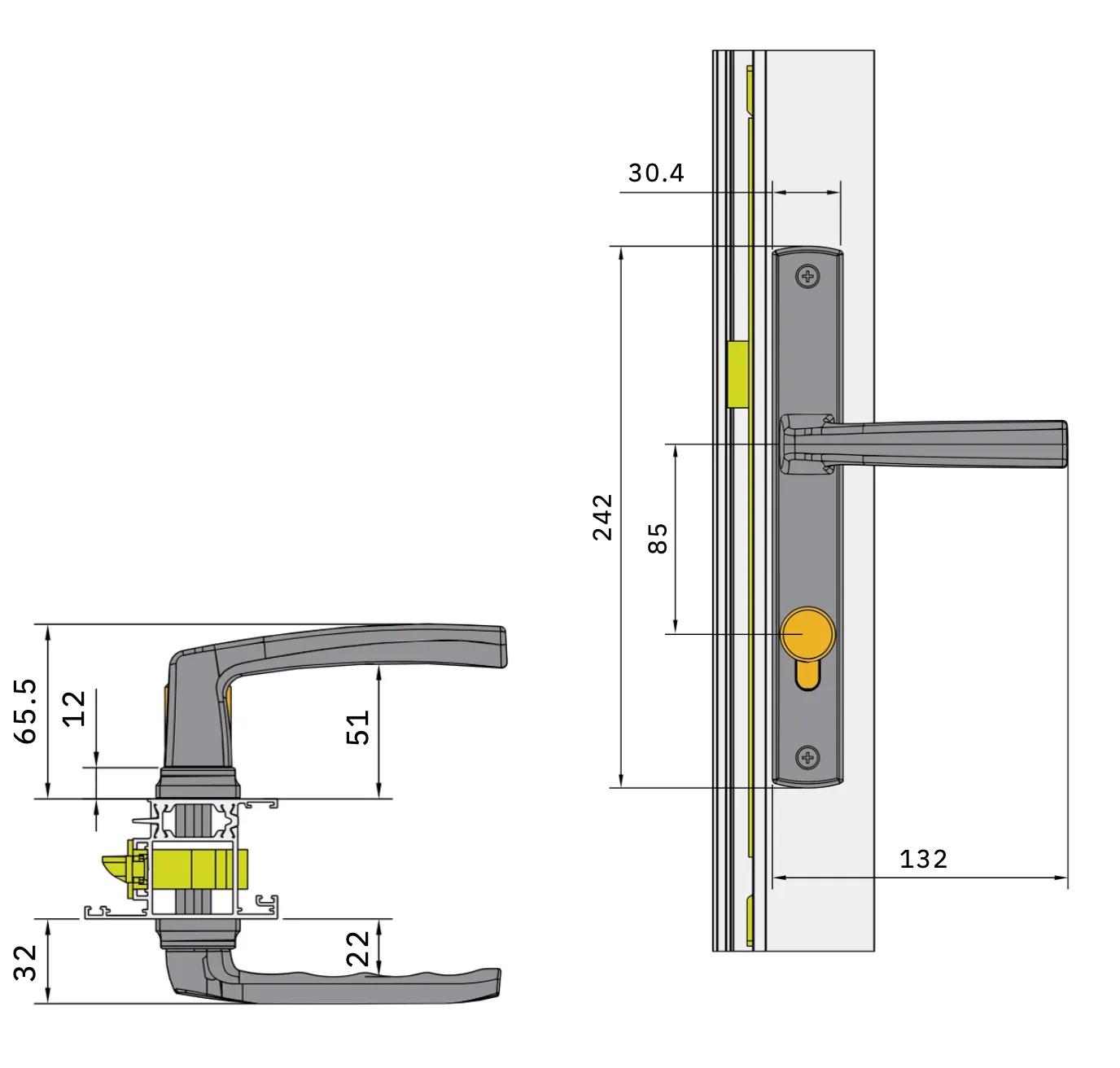

Swift Tail Lever Handle (Detailed Plate)
W23160A

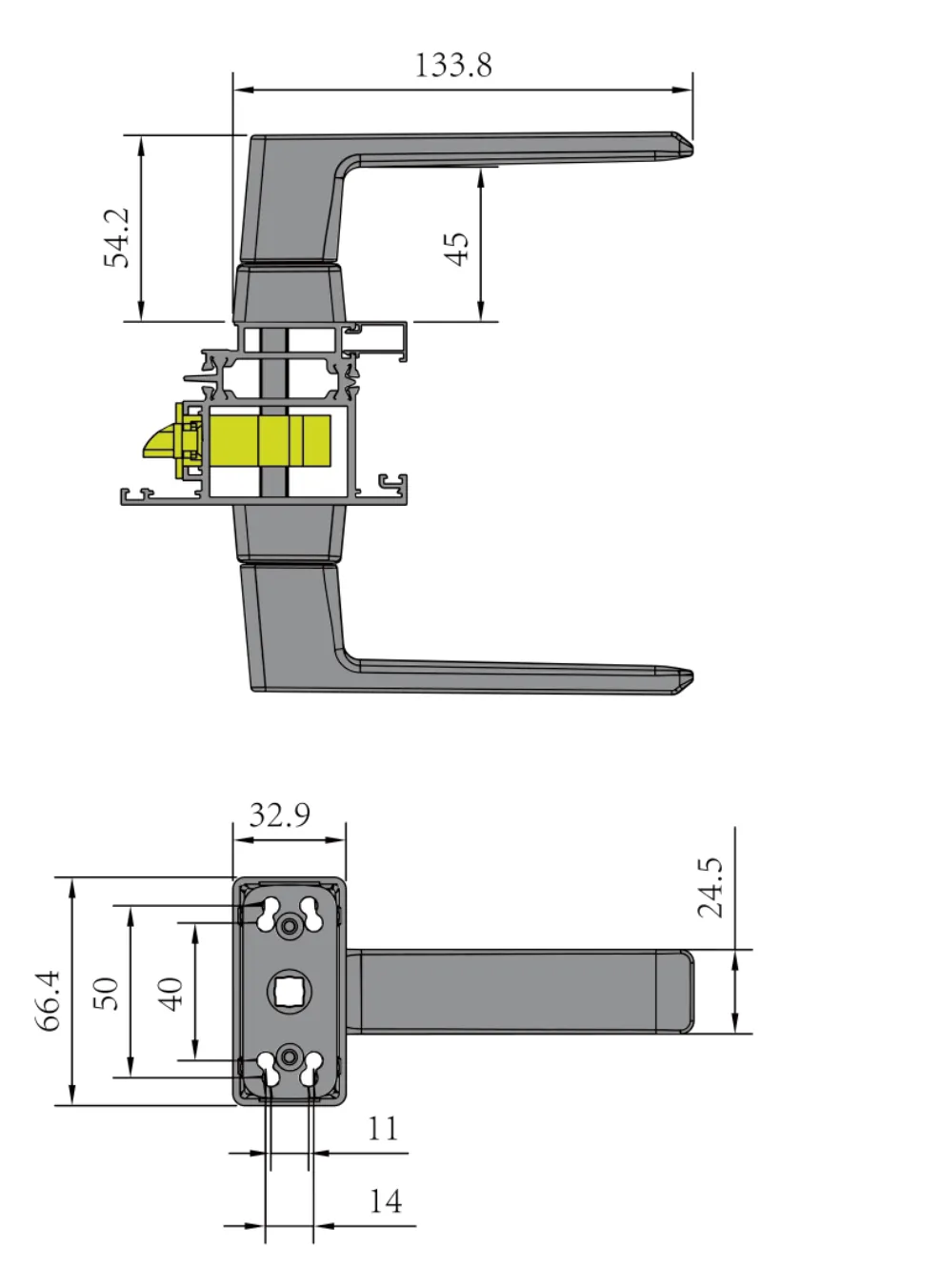

Quadra Handle
W23163
Request Offer
* WIEK System products are constantly being improved. We reserve the right to change technical values. Please contact our technical office for more detailed information.
